Cheap 130W &90W Mixed Metal Non Metal Materials CO2 Laser Engraving Cutting Machine

Basic Info.

Product Description

Cheap 130W &90W Mixed Metal Non Metal Materials Co2 Laser Engraving Cutting Machine

1.Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

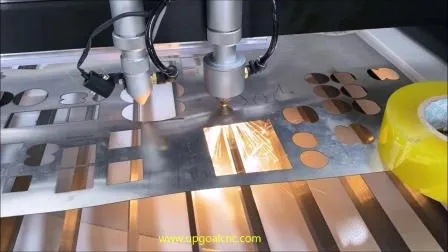

2.Equipped with double economic mixed metal&non-metal cutting head. Stainless steel, carbon steel, acrylic, leather, foam, and wood can be cut.

Laser head A1: with Reci W6 130W Co2 laser tube, mainly used for thin 1.2mm thickness metal cutting & thick non-metal cutting, laser head A2: with Reci W2 90W Co2 laser tube, used for non-metal fine engraving cutting.

3. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

4. Working Table: double working table and auto lifting table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table:Maximum Loading 50kgs with 200mm up-down distance.

6.Motion System: Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise. 7.With advanced embedded Leetro MPC 8530 DSP real-time mixed metal & non-metal laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.

8.Industrial water chiller CW-5202 is equipped to ensure the machine can work last long time. 9. With chuck or roller type rotary axis for cylinder engraving.

9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

Technical Parameters

Applications

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.Reference Sample Photos

For more information, just feel free to contact us!
