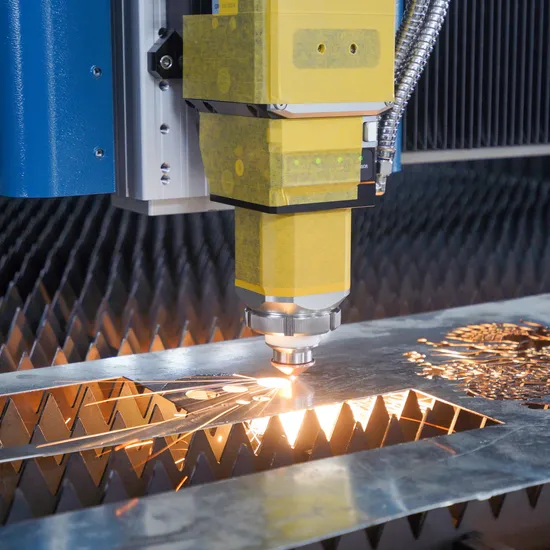

Real Factory CNC Mixed Laser Cutting Machine for Stainless Steel

• Overview
• Product Description
• Product Parameters
• Main parts
• Company Profile
• Packaging & Shipping
• Exhibition

Overview

Basic Info.

Application	Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Applicable Material	Metal
Structure Type	Gantry Type
Laser Classification	Free Electron Laser
Laser Technology	Laser Fusion Cutting
Machine	Metal Processing Machine
Processing Machinery Manufacturing Indus	Processing Machinery Manufacturing Industry
Machinery Manufacturing Technology	Machinery Manufacturing Technology
Metal Sheet	Produce Metal Sheet
Transport Package	Fumigation-Free Plywood Wooden Box
Specification	8650*2950*2000mm
Trademark	JATTRA(JINGCHUANG LASER)
Origin	China
HS Code	8456110090
Production Capacity	600 Sets/Year

Product Description

Fully enclosed fiber laser cutting machine can cut a variety of metal plates with different thickness, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized plate, alloy plate and other metal materials for rapid cutting.

1.Plate welding bed: welded by 15-20mm manganese steel plate with internal reinforcement to improve the hardness of the bed; 2.Follow-Up partitioning dust collector: effectively absorb dust and impurities, and improve the working environment of the machine; 3.Transmission system error within 0.03mm, by the gantry milling machine finishing processing, cutting process of high accuracy and small error; 4.Independent control cabinet configuration, easy maintenance and reduce component light wave interference, refrigeration to enhance the working life of components;

1. Free training course at our plant.
2. Specialized after-sales service group 24 hours online each day, to provide free technical support by e mail, whatsapp, wechat and so on.
3. Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it.
4. Providing technical services door to the door: we have professional engineers to offer machine installation commissioning and maintenance if customers pay ticket and related charges(accommodation problem) .(5 days training are free and overtime is 100 USD/Day)
5. About installation, because we ship the machine by a full container we won't disassemble too much p arts, the main parts that need to connect is laser source, water chiller and controller. We have detailed manual and videos, if you don't understand, our after-sales service man can guide you hand by hand, video call is available.

FAQ

1. This laser weld machine also need others? It only need nitrogen gas as protective gas.and also can use argon.but nitrogen is more cheaper than argon. 2.Does need professional technical to operate this machine? No. this machine operate is very easy. everyone can operate it . it only need about 10mins can learn it. 3.What is consumables life? For nozzles and protective lens, both can use about 30 days. 4.It need wire or not ? We have both model.one is without wire feeder , it use for material section is vertical.such as fiber laser cutting workpiece. The other is with wire feeder.It use for material have a little gap.and it can increase welding strength and penetration. 5.What type of welding wire is needed ? Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm. 6.If i buy machine without wire feeder, can add wire feeder later? No. because the laser head and controller are all different. If you have any questions, Please contact us . Product Description

Real Factory CNC 12040 Mixed Laser Cutting Machine For Stainless Steel

5.Hollow bed structure, avoid the thermal deformation of the bed caused by heat diffusion in high power work, ensure the long-term precision and stability of the bed;
6.European imported radiation-proof glass, block laser radiation and facilitate monitoring equipment at any time; 7.Large-size equipment with light curtain protection, enhance the safety of equipment operation.

Product Parameters

JATTRA GROUP(JINGCHUANG LASER) FIBER LASER CUTTING MACHINE JA-D SERIES
Model	JA-D3015	JA-D4020	JA-D6025	JA-D8025	JA-D12025
Working Area(mm)	3000*1500	4000*2000	6000*2500	8000*2500	12000*2500
X/Y Axis Positioning Accuracy	±0.03mm
X/Y Axis Repositioning Accuracy	±0.02mm
Max. Moving Speed	150m/min
Max.Acceleration	1.5G
Laser Power	1000W-20000W	2000W-30000W	2000W-30000W	6000W-50000W	12000W-50000W
Laser Source	MAX/ RAYCUS/ IPG (Optional)
Laser Cutting Head	OSPRI/ PRECITEC/ RAYTOOLS/BOCI (Optional)
Servo Motor	INOVANCE/ YASKAWA (Optional)
Control System & Software	CYPCUT
Reducer	TAIWAN FASTON

Main parts

Machine Body--Heavy Welding Machine Body

The bed adopts a plate-welded integral welding structure, which is rough-processed after annealing to eliminate internal stress, and is finished after secondary vibration aging treatment, which can well solve the stress caused by welding and processing, thereby greatly improving The stability of the machine tool.

Aviation Aluminium Cross-Beam

It is made of 6061 aluminum material, cast into shape, rough machining after annealing to eliminate internal stress, and fine machining after secondary vibration aging treatment.
The net weight of the beam reaches 150 kg, which can effectively withstand higher impacts, ensures the overall strength, rigidity and stability of the beam, and can be adapted to higher power motors
For each beam, we must use a laser collimator to check the beam accuracy to ensure that the beam accuracy is within 0.03mm, otherwise it is a substandard product and will be returned and exchanged.

Company Profile

JINGCHUANG (Tianjin) Laser Technology Co., Ltd. (JATTRA GROUP) started in 2015, the founder comes from the Swiss Bystronic

Group, the company technical team are from more than 10 years of experience in the laser industry. The company uses the most advanced modern industrial technology means engaged in fiber laser cutting machine, fiber laser pipe cutting machine , fiber laser welding machine , CNC bending machine, sheet metal complete sets of related industrial equipment and sales. Products are widely used in precision machinery, auto parts , kitchen hardware, electronic appliances, smart home and many other industries.

Packaging & Shipping

CNC metal fiber laser cutting machine

1.Timely delivery. Each machine is arranged with precise assembly steps without any delay. 2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely 3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
